Trane 5TTR4030 Air Conditioner – 2.5‑Ton, 14.3 SEER2 Single‑Stage Unit

When it’s time to replace your central air conditioner, navigating the sea of specifications can feel overwhelming. The Trane 5TTR4030 is a 2.5‑ton, 14.3 SEER2 single‑stage outdoor condenser that offers a straightforward path to home cooling comfort. This guide will help you understand what this unit delivers, how it performs, and whether it fits your needs.

2.5 Ton Trane AC System

14.3 – 15.2 SEER2 • Single Stage • Gas System

★★★★★ Top Rated

From $6,999 Installed

Perfect for smaller homes that need dependable cooling, strong value, and professional installation. Includes free installation and a 5-year labor warranty.

View Price → Check Your Price

Overview of the Trane 5TTR4030

The Trane 5TTR4030 is a 2.5‑ton, single‑stage outdoor condenser unit delivering 30,000 BTU/h of cooling capacity. With a 14.3 SEER2 efficiency rating and a price point of approximately $2,636.16 USD for the outdoor unit only, it represents Trane’s mid‑tier offering in residential cooling equipment.

The model number breaks down logically: 5TTR4 is the base series designation, while “030” indicates the 2.5‑ton capacity. This product belongs to Trane’s 5TTR40 series, also known as the “Choice” line, which is built for typical North American homes requiring moderate cooling output. The unit measures 42 inches wide by 30 inches deep by 37 inches tall and weighs 184 pounds—manageable dimensions for standard residential installation.

This article will help homeowners understand:

• Technical specifications and real-world performance
• Energy efficiency benefits compared to older systems
• Key Trane engineering features that promote reliability
• Installation requirements and maintenance basics
• Who this system serves best

Keep in mind that the 5TTR4030 is an outdoor condenser only. A complete cooling system requires matched indoor components, refrigerant line connections, and professional installation. The information here provides a foundation for informed conversations with licensed HVAC contractors who can assess your specific situation.

Cooling Capacity and Performance

The Trane 5TTR4030 delivers approximately 30,000 BTU/h of cooling capacity, which translates to 2.5 tons in HVAC terminology. This capacity typically suits homes in the 1,200 to 1,600 square foot range, though actual requirements vary based on climate zone, insulation quality, window exposure, and local humidity levels. A proper load calculation by a qualified contractor remains essential rather than relying on square footage estimates alone.

How 2.5 Tons Compares

Single‑Stage Operation Explained

This is a single‑stage unit, meaning the compressor runs at one consistent speed—full capacity or completely off. When your thermostat calls for cooling, the system engages at 100% output until the set temperature is reached, then cycles off.

The advantages include:

• Proven, time-tested technology
• Lower upfront cost than multi-stage systems
• Simpler mechanical design with fewer potential failure points
• Straightforward repairs when service is needed

The trade-off is slightly larger temperature swings around your thermostat setpoint—typically 1 to 2 degrees Fahrenheit—compared to two‑stage or variable‑speed systems that can modulate output to match partial cooling loads. For most homeowners, this represents acceptable comfort performance in typical summer conditions.

Energy Efficiency – 14.3 SEER2 Rating

The 5TTR4030 carries a 14.3 SEER2 efficiency rating, positioning it as a mid‑tier performer in today’s residential air conditioning market. But what does this number actually mean for your utility bills?

What Is SEER2?

SEER2 (Seasonal Energy Efficiency Ratio, Version 2) is the updated U.S. efficiency standard introduced in 2023 to replace the older SEER metric. The new testing protocol uses more stringent conditions that better reflect real-world residential operation, including variable fan speeds and outdoor temperatures consistent with actual use patterns.

Plain-language definition: SEER2 measures how efficiently an air conditioner converts electricity into cooling over an entire cooling season. Higher numbers indicate greater efficiency and lower operating costs.

Efficiency in Context

The 14.3 SEER2 rating meets or exceeds minimum federal efficiency requirements in most U.S. regions as of 2026. It’s not the highest efficiency available—premium variable-speed systems can reach 16+ SEER2, and even some single‑stage models like 3‑ton, 15.2 SEER2 Trane condensers push efficiency higher—but it represents a meaningful improvement over older equipment.

If you’re replacing a 10‑12 SEER unit from the early 2000s, you can expect noticeably lower summer electric bills. Stepping up to units with even higher ratings, such as 3.5‑ton, 15.2 SEER2 Trane condensers, can further reduce operating costs. The exact savings depend on several factors:

• Your local climate zone and cooling season length
• Thermostat settings and usage patterns
• Duct system condition and air leakage
• How well the indoor and outdoor components are matched

The unit also carries an EER2 rating of 11.7, which measures peak-load efficiency at 95°F outdoor temperature. This confirms solid performance during the hottest days when your system works hardest.

Key Trane Engineering Features

Trane has built residential cooling equipment for decades, earning a reputation for durability under demanding conditions. The 5TTR4030 2.5‑ton, 14.3 SEER2 condenser incorporates several proprietary technologies designed to deliver long service life and dependable performance year after year.

Climatuff® Compressor

The heart of this system is Trane’s Climatuff® scroll compressor. Unlike older piston-pump designs, scroll compressors use two interlocking spiral elements to compress refrigerant in a smooth, continuous process. This design offers:

• Quieter operation at 73 dBA—moderate for residential equipment
• Better reliability and longer service life
• Built-in over-temperature and pressure protection
• Proven performance in high-temperature environments up to 115°F

The internal protection features allow the compressor to automatically respond to abnormal operating conditions, reducing the risk of catastrophic failure from high-pressure events or thermal overload.

Spine Fin™ Outdoor Coil

The 5TTR4030 features an all-aluminum Spine Fin™ woven coil design for the outdoor heat exchanger. The coil geometry maximizes surface area for heat transfer while maintaining low airflow resistance. Similar aluminum coil designs are used on larger 4‑ton, 15.2 SEER2 Trane condensers. Aluminum construction resists corrosion naturally—a significant advantage in coastal areas or regions with high salt content in the air.

Cabinet Construction

Trane hasn’t skimped on the exterior either. The list of protective features includes:

• Heavy-gauge galvanized steel cabinet
• Baked-on powder-paint finish for corrosion resistance
• DuraTuff™ basepan designed to resist cracking, rust, and warping
• Louvered panels protecting all four sides of the coil
• Top grille shielding the fan from debris

An optional WeatherGuard™ polycarbonate top provides additional protection in harsh weather environments.

System Compatibility and Refrigerant

The 5TTR4030 is designed to operate as part of a matched Trane system, not as a standalone unit. Understanding how the components work together helps you find the right configuration for your home.

Matched System Components

For optimal performance, the outdoor condenser should pair with compatible Trane indoor equipment:

• Air handler with integrated evaporator coil, or
• Gas furnace with matched indoor coil
• Compatible thermostat

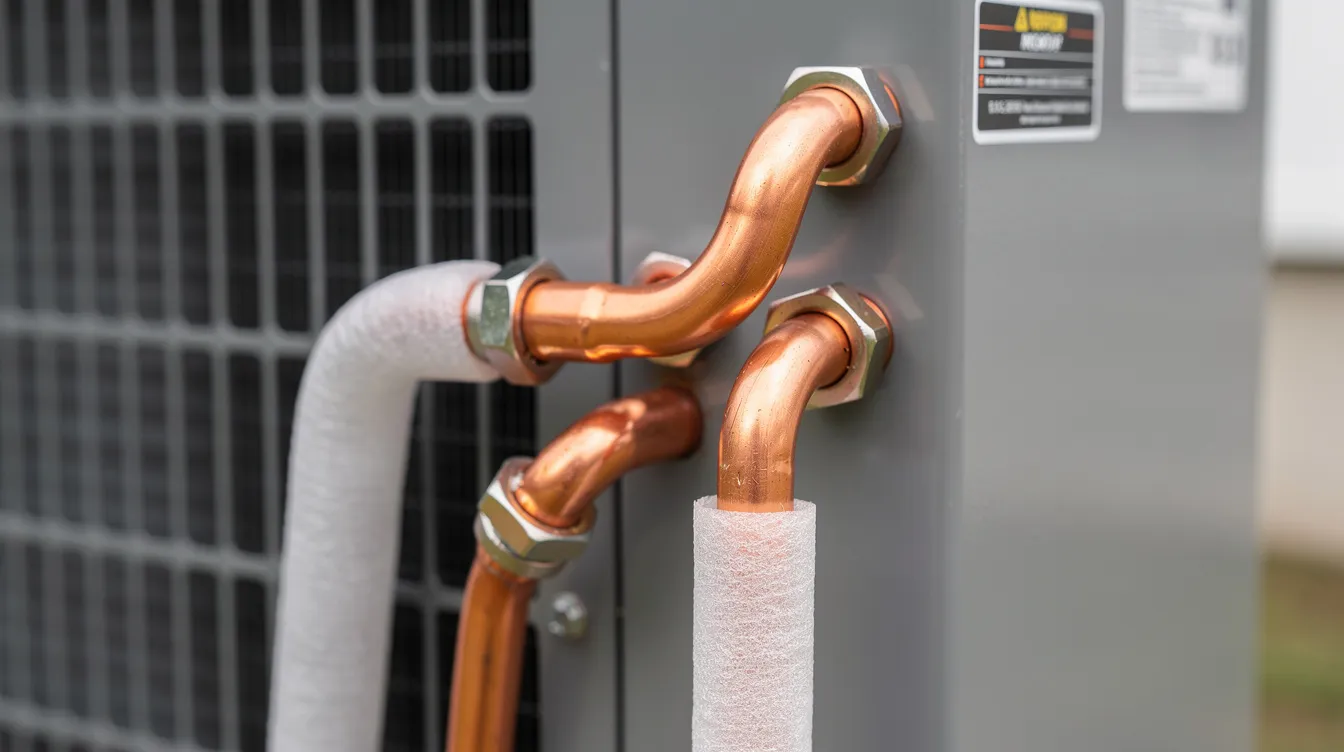

• Properly sized refrigerant line set (3/4” liquid line, 5/16” suction line)

Using properly matched components ensures the system achieves its advertised 14.3 SEER2 efficiency and maintains warranty coverage. AHRI certification of matched pairs confirms that the combination has been tested and verified for proper operation.

R‑454B Refrigerant

The 5TTR4030 exclusively uses R‑454B refrigerant, a newer hydrofluoroolefin (HFO) blend with significantly lower Global Warming Potential than legacy R‑410A. This aligns with evolving environmental regulations and positions the system for long-term regulatory compliance, similar to higher‑efficiency 5‑ton, 15.2 SEER2 Trane condensers using R‑454B.

Important considerations for homeowners:

• R‑454B requires different handling and charging procedures than older refrigerants
• Only trained, licensed HVAC professionals should install or service the system
• The refrigerant must be handled as a liquid during certain procedures
• You cannot simply “top off” R‑454B yourself—improper service can damage equipment

The unit arrives factory-charged for the condenser plus ten feet of tested line set and the smallest rated indoor coil match. Your contractor will verify charging during installation and adjust if your configuration differs.

Installation, Sizing, and Maintenance Considerations

Even the best equipment underperforms when installed incorrectly. Proper sizing, professional installation, and regular maintenance are critical to achieving the comfort, efficiency, and reliability this system can deliver.

Sizing Right

Contractors should perform a Manual J load calculation (or equivalent) rather than guessing based on square footage. This calculation accounts for:

• Local climate data
• Building orientation and sun exposure
• Window area and glazing type
• Insulation values
• Air infiltration rates
• Internal heat sources and occupancy

Oversizing leads to short-cycling, poor humidity control, and higher energy consumption, which becomes especially noticeable with higher-capacity equipment like 3.5‑ton, 14.3 SEER2 Trane condensers. Undersizing means the system can’t keep up on the hottest days.

Installation Essentials

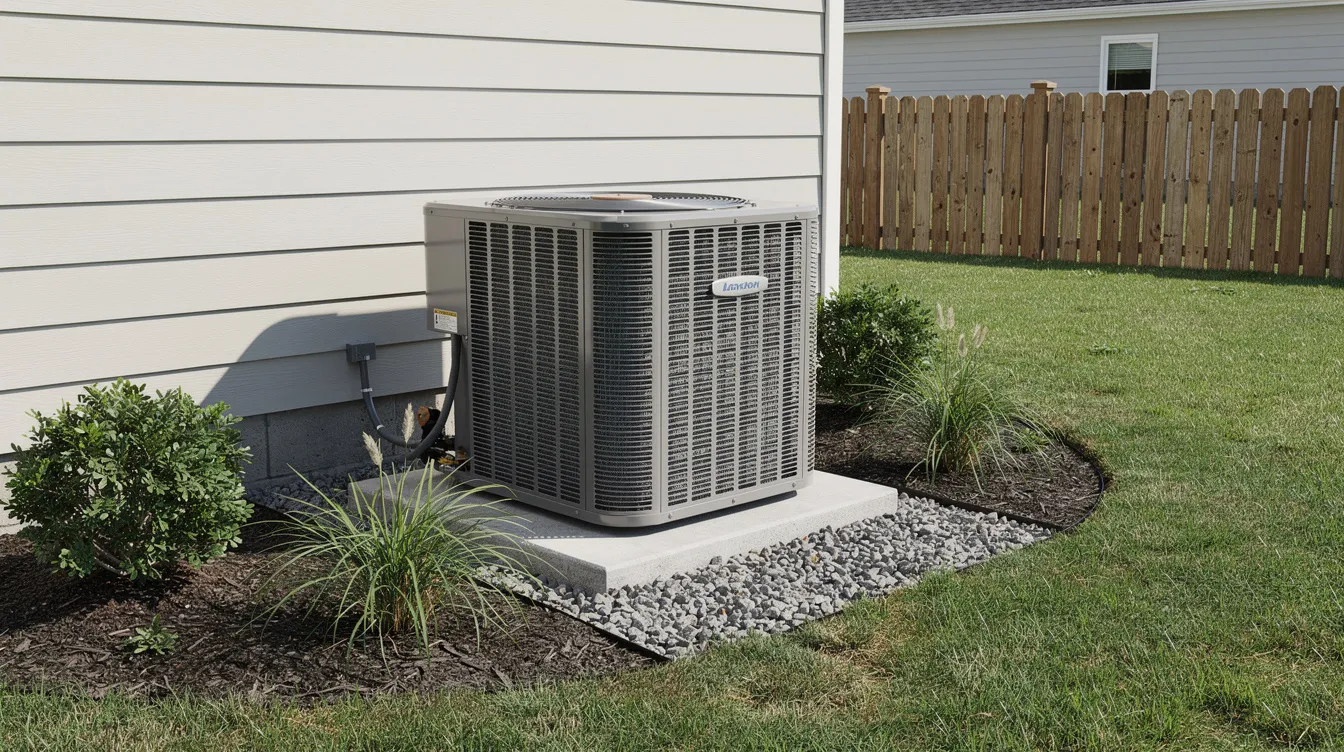

• Level mounting on a concrete pad or frame
• Adequate airflow clearance around all sides of the unit
• Correct line-set sizing and insulation
• Proper R‑454B refrigerant charging by certified technicians, which is just as critical on larger 5‑ton, 14.3 SEER2 Trane condensers
• Access panels positioned for future service needs

Homeowner Maintenance

You don’t need special supplies or technical training for basic maintenance. A simple seasonal checklist keeps your system running efficiently:

• Keep the outdoor coil clear of leaves, grass clippings, and debris
• Maintain 2-3 feet of clearance around the unit
• Change indoor air filters monthly during peak cooling season
• Schedule annual professional tune-ups
• Listen for unusual sounds that might sign mechanical issues

Professional maintenance typically includes refrigerant charge verification, electrical connection inspection, coil cleaning, and performance testing.

Warranty, Pricing, and Who the 5TTR4030 Is Best For

Understanding the warranty terms, total cost considerations, and ideal use cases helps you determine whether this system fits your situation.

Warranty Coverage

Trane offers up to a 10-year limited parts warranty and 10-year compressor warranty when the equipment is properly registered with the manufacturer. Failing to register typically reduces coverage to 5 years, so complete this step promptly after installation to protect your rights to full warranty support.

Some Trane dealers bundle additional labor warranties or maintenance plans with installation—ask about these options when getting quotes.

Pricing Perspective

The reference price of approximately $2,636.16 USD covers the outdoor unit only. Total installed cost includes:

• Indoor air handler or furnace with coil ($1,500-$3,000+)
• Refrigerant and line set
• Electrical work and permits
• Professional labor
• Optional accessories

Expect complete system costs in the $6,000-$10,000+ range depending on your region and installation complexity. Get detailed written estimates from multiple contractors before committing.

Ideal Customer Profile

The 5TTR4030 serves homeowners who:

• Need a reliable 2.5-ton cooling system from an established brand
• Want mid-tier efficiency without premium pricing
• Prefer proven single-stage technology over complex multi-stage systems
• Value long-term dependability and strong warranty backing
• Are replacing older equipment and want meaningful efficiency improvements

This is not the right choice if you prioritize maximum efficiency (look at 16+ SEER2 systems), need the lowest purchase price (consider budget brands), or require the smoothest possible temperature control (variable-speed systems excel here).

Next Steps

Ready to move forward? Consult a local licensed HVAC professional to confirm proper sizing through a load calculation. Request a detailed written estimate that breaks down equipment, labor, and any additional work required. Ask about current Trane promotion offers and financing options that might make your investment more manageable.

The Trane 5TTR4030 delivers exactly what it promises: straightforward, dependable cooling from a manufacturer with decades of residential expertise. For homeowners seeking that balance of performance, durability, and value, it remains a compelling choice.
