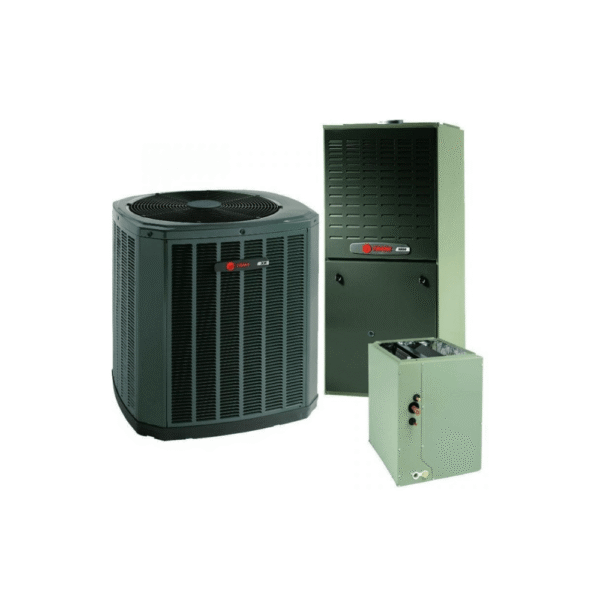

R-454B Trane 5 Ton 16 SEER2 Single-Stage Air Conditioner with 80% AFUE Multi-Positional Gas Furnace (Model 5TTR6060)
Trane 5 Ton 16 Seer Air Conditioner: Installed Price and Details (Model 5TTR6060)
R-454B Trane 5 Ton 16 SEER2 Air Conditioner with 80% AFUE Multi-Positional Gas Furnace (Model 5TTR6060)Professional installation included. Financing available.
Professional Cooling Power for Large Homes
The 5 Ton Trane 16 SEER2 Air Conditioner Installed Price depends on the full installation scope, but the system itself is designed for one clear purpose: cooling larger homes through long, demanding Texas summers. The Trane XR16 model 5TTR6060 delivers approximately 60,000 BTU of cooling per hour, which is why a 5 ton AC is commonly considered for homes around 2,500 to 3,500 square feet.
This Trane air conditioner is a strong fit for homes in Dallas, Plano, McKinney, Allen, Frisco, Garland, Richardson, Irving, Fort Worth, and surrounding areas where heat, humidity, attic temperatures, and long run times put serious stress on air conditioners. Proper sizing still matters. A Manual J load calculation should confirm whether a 5 ton ac unit is right for your house, because insulation, windows, ceiling height, existing ductwork, and sun exposure all affect comfort and efficiency.
Unlike a basic single speed system that runs at full output every time it turns on, the Trane XR16 5TTR6060 uses two-stage operation to cool more steadily. That means the compressor can operate at a lower capacity for everyday cooling and shift to full capacity during peak heat. The result is a quieter, more energy efficient hvac system with better humidity control and less temperature swing.
Professional installation is included, and the goal is transparent pricing based on your actual home-not a vague online guess. Your detailed quote can include the outdoor condenser, matched indoor evaporator coil, line set evaluation, electrical wiring needs, thermostat options, permit coordination, startup testing, and warranty registration.
Why You’ll Love Your Trane 5TTR6060
- Up to 16.2 SEER2 Efficiency – The Seasonal Energy Efficiency Ratio, or SEER2, measures an air conditioner’s energy efficiency, with higher numbers indicating better cooling performance in various conditions. The Trane 5TTR6060 offers up to 16.2 SEER2, depending on matched indoor equipment, helping many homeowners save money compared to an old system with a lower seer rating.
- Two-Stage Cooling – Two-stage air conditioning systems operate at lower capacity most of the time, which aids in humidity management. Multi-stage or variable-speed compressors in HVAC systems prevent short-cycling and improve humidity control, and the Trane two-stage Climatuff compressor gives this system a major comfort advantage over single speed alternatives.
- Quiet Operation – With a sound level of approximately 72–74 dB, the 5TTR6060 is built to keep noise reasonable for a high-capacity 5 ton unit. It is not silent, and placement still matters, but it is designed to avoid the loud, harsh cycling many homeowners associate with an aging old unit.
- Built Texas-Tough – Trane units are known for their heavy-duty components, such as the proprietary Spine Fin outdoor coil, which resists corrosion and debris. The Spine Fin outdoor coil of HVAC systems boasts the lowest refrigerant leak rate in the industry, and Trane air conditioners are often considered among the most reliable and durable HVAC systems available.
- 10-Year Warranty – With online registration, the Trane 5TTR6060 includes a 10-year manufacturer parts warranty. Trane air conditioners are often considered among the most reliable and durable HVAC systems available, with a typical lifespan of 15 to 20 years when properly maintained.
The initial cost of a Trane ac unit can be higher than many competing air conditioners, but homeowners often choose Trane for reliability, high efficiency, comfort, and long-term value. Upgrading to a higher SEER rating can lead to significant savings on monthly energy costs because systems with higher ratings consume less energy to cool a home.
What Makes the Trane XR16 Energy Efficiency Different
Most 5 ton air conditioners are built around a basic single-stage compressor that cycles on and off at full power. That can create hot spots, uneven temperature, excess indoor humidity, and more wear on the system. The Trane XR16 5TTR6060 is built differently.
- Two-Stage Climatuff Compressor – The two-stage Climatuff compressor can run at lower capacity during normal cooling demand and full capacity during extreme Texas heat. This helps the system installed in your home maintain steadier air temperature, reduce short cycling, and improve humidity control without requiring a fully variable speed system.
- Spine Fin All-Aluminum Coil – Trane units are known for their heavy-duty components, such as the proprietary Spine Fin outdoor coil, which resists corrosion and debris. Compared with many traditional coils, the Spine Fin all-aluminum design supports efficient heat transfer and long-term durability in harsh outdoor conditions.
- R-454B Refrigerant – The 5TTR6060 is listed here with R-454B refrigerant, or the current refrigerant depending on production date. R-454B is part of the industry move toward lower-GWP refrigerant technology. Your installer should verify the refrigerant type on the exact new unit before installation, especially during model-year transitions.
- WeatherGuard Top – The WeatherGuard top helps protect internal components from hail, debris, sun exposure, and Texas weather extremes. Along with corrosion-resistant construction and base protection, this helps protect your purchase over time.
Trane is known for its high-quality materials and rigorous testing processes, which contribute to its reputation for longevity and performance compared to other brands in the HVAC market. Trane’s legacy, including its history connected with Ingersoll Rand, has helped make trane air products a common choice for homeowners who prioritize reliability over the lowest initial cost.
This system can also be paired with smart thermostat options, a compatible air handler, a gas furnace, indoor air quality add ons, or products such as Trane CleanEffects when the entire system design calls for better filtration. The minimum efficiency reporting value, or MERV ratings, help gauge air filter performance in HVAC systems by indicating their ability to trap particles.
How Your Installation Works
- Step 1 – Free In-Home Assessment
A licensed HVAC professional evaluates your house, existing ductwork, electrical wiring, current furnace or air handler, thermostat, line set, indoor coil, and outdoor unit location. Proper sizing of an air conditioning unit is essential and should be determined through a load calculation to ensure efficiency and comfort in the home. This is where we confirm whether a 5 ton Trane AC unit cost estimate makes sense for your home. - Step 2 – Professional Installation
Your installation can include the Trane 5TTR6060 outdoor condenser, matched indoor evaporator coil, refrigerant line connections, basic installation materials, thermostat connection, and required system components. A full HVAC installation typically includes the installation of the condenser, coil, furnace, and thermostat, ensuring a complete system replacement for optimal performance when the entire system is being replaced. Selecting the right features and add-ons during installation—such as advanced thermostats, air quality upgrades, or energy-saving accessories—can further enhance system performance, efficiency, and convenience. - Step 3 – Testing and Startup
After install, the technician performs startup testing, refrigerant charge verification, airflow checks, electrical safety checks, thermostat configuration, and warranty registration. A properly installed system is critical to reaching maximum efficiency because duct losses, incorrect charge, poor airflow, and mismatched components can reduce performance.
A complete system replacement typically takes 6–8 hours, depending on access, ductwork condition, electrical modifications, permitting needs, and other factors. Installation costs for HVAC systems can vary based on factors such as the model, size, and any necessary ductwork or electrical modifications required during the installation process.
Advanced commercial-style HVAC installations may use Supervisory Control and Data Acquisition, or SCADA, systems for better management and monitoring. Most homes do not need SCADA, but the same principle applies: proper setup, testing, and monitoring help the system perform as designed.
Complete System Specifications
| Specification | Trane 5TTR6060 Details |
|---|---|
| Product Type | Split System Air Conditioner |
| Brand | Trane |
| Series | XR16 |
| Model Number | 5TTR6060 |
| Capacity | 5 Tons |
| Cooling Output | 60,000 BTU |
| Efficiency | Up to 16.2 SEER2 depending on matched indoor equipment |
| Seasonal Energy Efficiency Ratio | SEER2 rating measures energy efficiency under updated testing standards |
| Compressor Type | Two-Stage Climatuff® Compressor |
| Outdoor Coil | Spine Fin™ All-Aluminum Coil |
| Refrigerant | R-454B, or current refrigerant depending on production date |
| Sound Level | Approximately 72–74 dB |
| Electrical Requirements | 208/230V, 1 Phase, 60 Hz |
| Approximate Height | 45 inches |
| Approximate Width | 37 inches |
| Approximate Depth | 34 inches |
| Approximate Weight | 300–340 lbs |
| Warranty | 10-Year Manufacturer Parts Warranty with online registration |
| Recommended Home Size | Approximately 2,500–3,500 sq ft depending on load calculation |
Trane air conditioner dimensions may vary slightly by manufacturing revision, so final space planning should be confirmed before installation. Outdoor clearance, condenser pad condition, service access, airflow, and local code requirements can all affect where the new unit should be installed.
Trane air conditioners have SEER2 ratings ranging from 13.4 to 23.6, reflecting a wide range of energy efficiency options available in the market. The 5TTR6060 sits in the high efficiency middle of that range: more efficient than minimum-efficiency options, but typically less costly than advanced variable speed systems.
While Trane air conditioners are recognized for their efficiency and reliability, they are often priced higher than many competitors, making them one of the more expensive options in the market. Trane air conditioner prices can vary significantly based on factors such as model, size, and SEER rating, with higher efficiency models generally costing more. Published national pricing examples for Trane models such as the XR14 AC unit and the high-efficiency XL17i show that model tier, efficiency, and complete installation scope can change the final investment substantially.
What’s Included in Your Installation
Your Trane 5TTR6060 installation is designed to be a complete, properly matched cooling upgrade-not a partial replacement that leaves performance to chance.
- Trane 5TTR6060 outdoor condenser unit
- Matched indoor evaporator coil for optimal efficiency
- Basic professional installation labor and materials
- Permit and inspection coordination when required
- Old equipment removal and disposal
- Refrigerant charge and system startup
- Thermostat connection or thermostat upgrade options
- Line set evaluation and connection
- Electrical wiring inspection and required connection work
- Warranty registration and documentation
- Optional complete hvac system pairing with air handler, furnace, or 80% AFUE multi-positional gas furnace when needed
A matched system matters. If the outdoor ac unit is paired with the wrong indoor coil, an undersized return, restricted ductwork, or an incompatible blower, the system may not deliver its rated efficiency. Existing ductwork can reduce performance if it is leaky, undersized, poorly insulated, or not balanced for a 5 ton air conditioner.
DuraTuff base pans in HVAC systems prevent rust, cracks, and corrosion at the base of the unit, and Trane’s outdoor construction is designed to stand up to long-term weather exposure. Regular maintenance is still highly recommended. Research shows that regular maintenance of HVAC systems can enhance energy efficiency and prolong lifespan.
Who This System With Humidity Control Is Perfect For
Ideal for:
- Homeowners with 2,500–3,500 square foot homes in Dallas, Plano, McKinney, Allen, Frisco, Garland, Richardson, Irving, Fort Worth, and nearby Texas communities
- Families replacing an old system that struggles during extreme heat
- Homeowners who want better humidity control than a single speed ac system can typically provide
- Buyers comparing Trane 5TTR6060 price installed, Trane XR16 5 ton price, and 5 ton AC installed price options
- Anyone who wants a durable trane air conditioner with strong warranty coverage and a reputation for reliability
- Homeowners planning a full system installed with a condenser, coils, gas furnace, thermostat, and matched indoor equipment
A 5-ton air conditioning unit typically provides 60,000 BTUs of cooling per hour, suitable for homes spanning 2,500 to 3,500 square feet. That said, square footage alone is not enough. A shaded, well-insulated house may need less capacity than expected, while a home with high ceilings, west-facing glass, attic heat, or poor ductwork may need a different system design.
If your current ac runs constantly, leaves rooms warm, feels loud outside the bedroom window, or cannot remove humidity, the Trane 5TTR6060 may be a strong upgrade. If you are considering a heat pump instead of a straight cool air conditioner, ask during your estimate so the installer can compare comfort, energy, and heating needs.
Frequently Asked Questions
How much does the Trane 5TTR6060 cost installed?
The installed price depends on matched indoor equipment, existing ductwork, electrical wiring, line set condition, permit requirements, thermostat selection, add ons, labor costs, and installation complexity. The most accurate way to compare the Trane 5TTR6060 price installed is to use the AC cost calculator or request a detailed quote after an in-home assessment.
What size home needs a 5 ton AC?
A 5 ton ac is commonly used for homes around 2,500 to 3,500 square feet, and it typically provides 60,000 BTU of cooling per hour. Proper sizing should always be confirmed through a load calculation because insulation, ceiling height, window exposure, duct condition, and Texas heat loads can affect the right system size.
Is the Trane XR16 worth the investment?
For many large Texas homes, yes. The XR16 5TTR6060 offers up to 16.2 SEER2, two-stage cooling, a durable Climatuff compressor, and a Spine Fin coil. While Trane air conditioners are often priced higher than many competitors, homeowners choose Trane for efficiency, reliability, quiet operation, and long-term performance.
How long does the 5TTR6060 typically last?
Trane air conditioners are often considered among the most reliable and durable HVAC systems available, with a typical lifespan of 15 to 20 years when properly maintained. Regular filter changes, coil cleaning, airflow checks, refrigerant checks, and annual service help protect efficiency and extend system life.
What are the exact dimensions?
The approximate outdoor unit dimensions are 45 inches high, 37 inches wide, and 34 inches deep. Weight is approximately 300–340 lbs. Dimensions may vary slightly by manufacturing revision, so final measurements should be verified before install.
What warranty is included?
The 5TTR6060 includes a 10-year manufacturer parts warranty with online registration. Manufacturer warranty does not usually include labor unless a separate labor warranty is provided by the contractor. Ask about available labor protection when booking your estimate.
Does the system use R-454B refrigerant?
This product page lists the 5TTR6060 with R-454B, or the current refrigerant depending on production date. Your installer should confirm the refrigerant type on the exact new unit before installation.
Can this system work with a smart thermostat?
Yes. The Trane XR16 can be paired with compatible thermostat options, and a smart thermostat can help improve scheduling, comfort control, and energy management when properly configured.
Is this the same as a variable speed system?
No. The 5TTR6060 is a two-stage system, not a fully variable speed system. Two-stage cooling still provides greater efficiency and humidity control than a basic single speed unit, while variable speed systems generally offer more precise modulation at a higher initial cost.
Can I add indoor air quality upgrades?
Yes. Depending on your indoor equipment, you can discuss options such as higher-MERV filtration, media cabinets, Trane CleanEffects, air purification add ons, and duct improvements. If someone in the room holding an air filter notices heavy dust buildup every month, indoor air quality upgrades may be worth discussing.
Ready to Upgrade Your Home Comfort?
Stop fighting Texas heat with an outdated, inefficient, loud old system. Choose the Trane 5TTR6060 5 Ton 16 SEER2 AC for powerful cooling, improved humidity control, durable components, and professional installation from a licensed, insured local Dallas area team.
Get Your Exact Price
Book Free Estimate
Explore Trane HVAC System Options
Professional installation is included. Financing is available. Ask about our 5-year labor warranty and professional installation guarantee.
Compare 5 Ton Trane AC Unit Cost Options
| Product | Best For | Efficiency | Comfort Level |
|---|---|---|---|
| 5 Ton Trane 14.3 SEER2 | Budget-focused replacement | 14.3 SEER2 | Standard cooling |
| 5 Ton Trane 16 SEER2 – Model 5TTR6060 | Large Texas homes wanting efficiency and comfort | Up to 16.2 SEER2 | Two-stage comfort |
| 5 Ton Trane 18 SEER2 | Homeowners wanting premium energy efficiency | Up to 18 SEER2 class | Advanced comfort |
The 5 ton Trane 16 SEER2 AC is the practical middle ground for many homeowners: higher efficiency than entry-level equipment, better humidity control than many single-stage systems, and lower complexity than some premium variable speed options.
Ready to replace your old unit with a new system built for Texas conditions? Use the calculator or contact us by phone to schedule your free in-home estimate today.
